Product Detail

The Arrow series blends the best of the Execute touring cars with a shaft-driven system, featuring floating gearboxes for added chassis flex and an easy-to-adjust motor mount. Designed for racing straight from the box, the Sport version offers budget-friendly materials with upgrade options.

The Arrow AT1 Sport Rally edition includes key updates for rally performance!

Required to Run

• Assembly of kit
• Transmitter with compatible receiver
• Motor, ESC and Servo
• Pinion gear (64p)
• Battery and Charger
• Body shell
• Wheels, Tires, Inserts

Features

• Internal Gear Ratio: 2.353
• 4WD Shaft Drive Floating Gear Box System
• Universal Driveshafts
• Sealed Transmission Gear Box
• Front Spool & Rear Gear Differential Unit
• Front & Rear Composite Propeller Shaft
• Roll Bar Upgradeable
• Spring Loaded Battery Mounts for Quick Battery Change
• Durable Composite Drive Gears

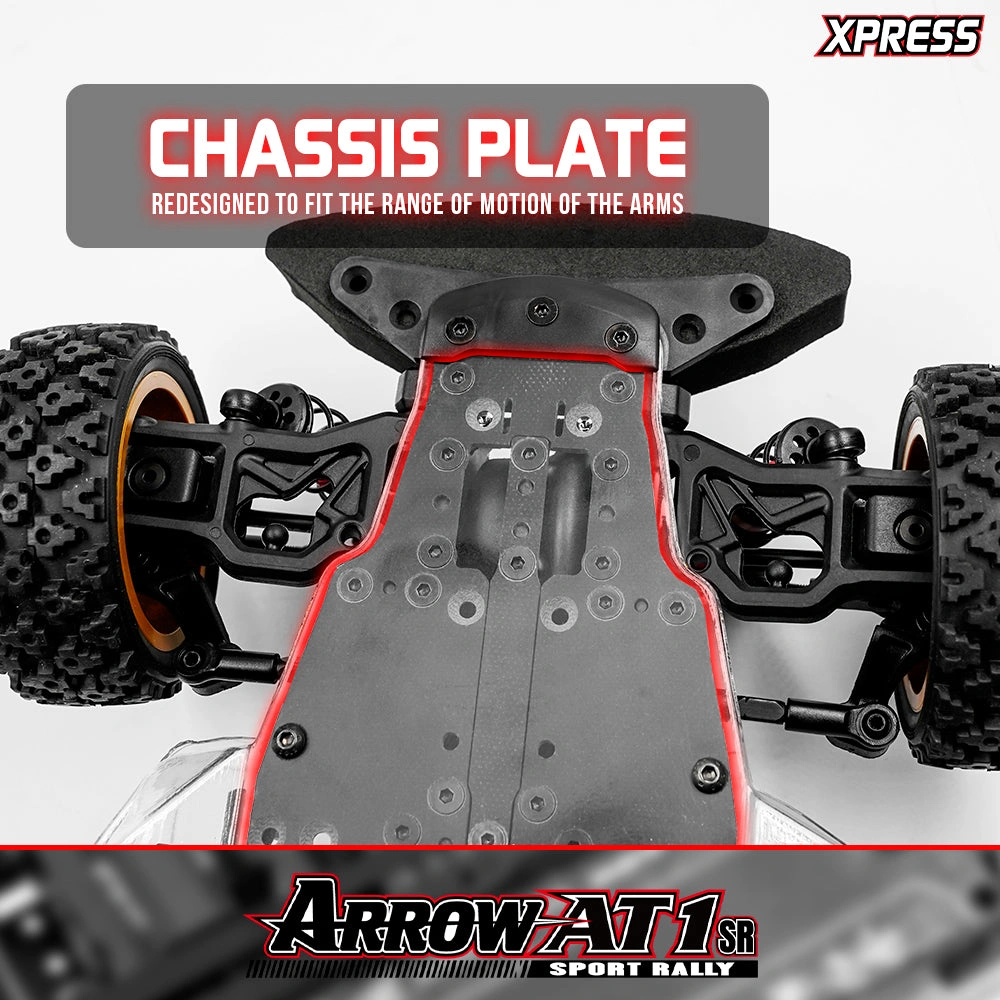

• 2.25mm Fiber Main Chassis
• 2.0mm Fiber Top Deck
• Full Turnbuckle Linkages
• Full Ball Bearing Set
• Vertical & Horizontal Rear Body Post Included
• Slotted motor mount for easy to adjust gear mesh

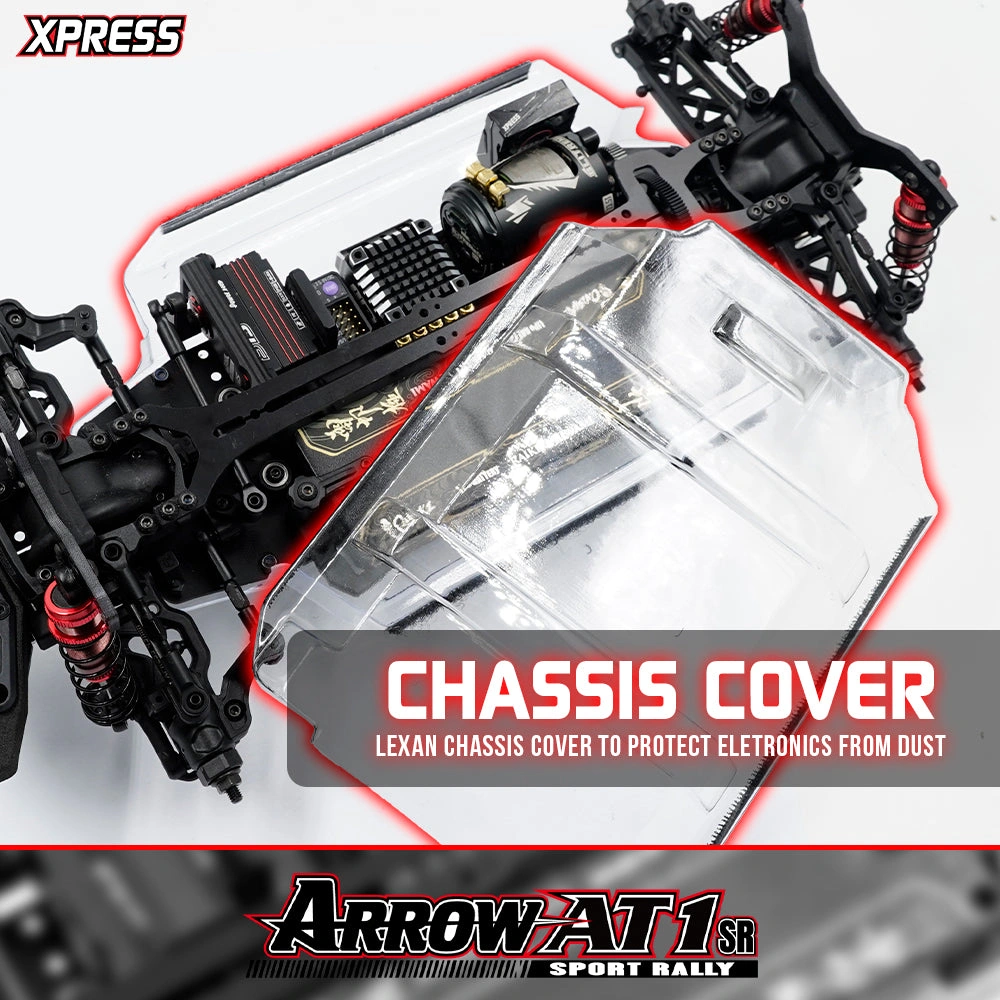

• Lexan chassis cover to protect eletronics from dust
• Steering rack updated for off-road geometry

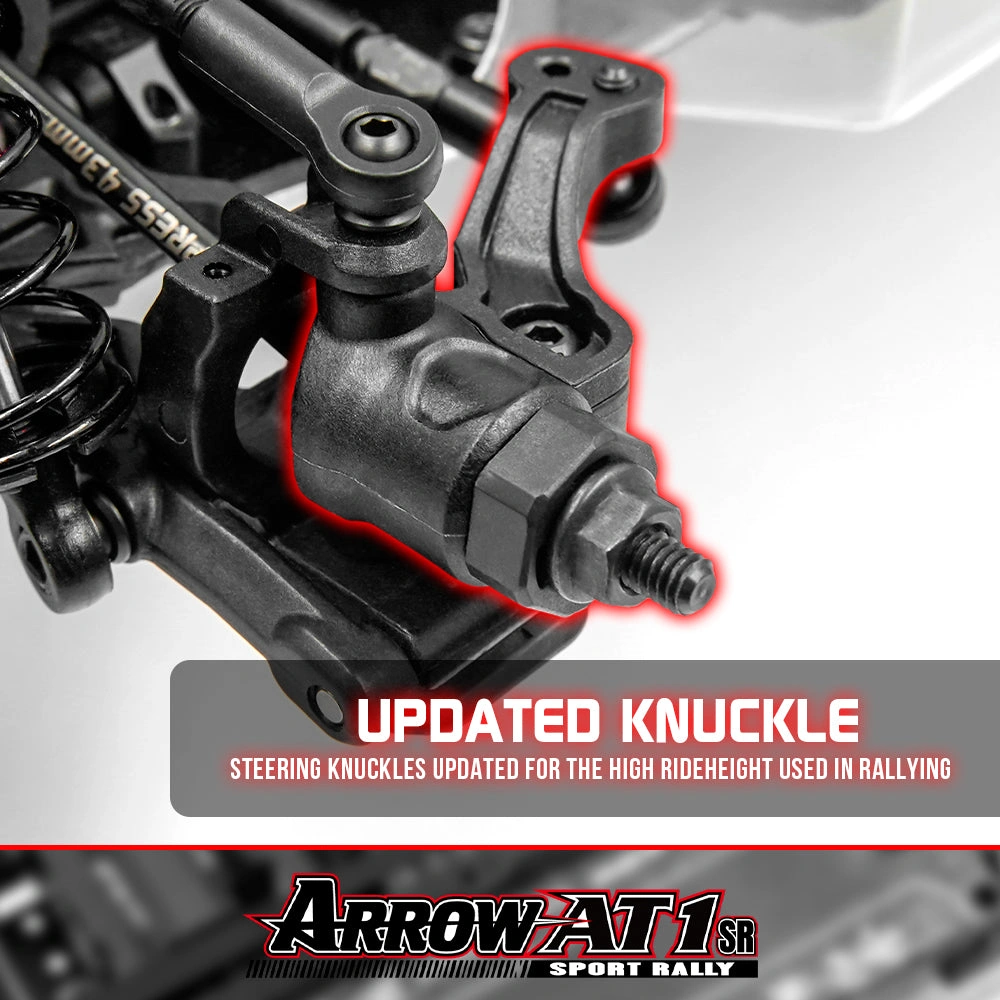

• Steering Knuckles updated for the high rideheight used in rallying

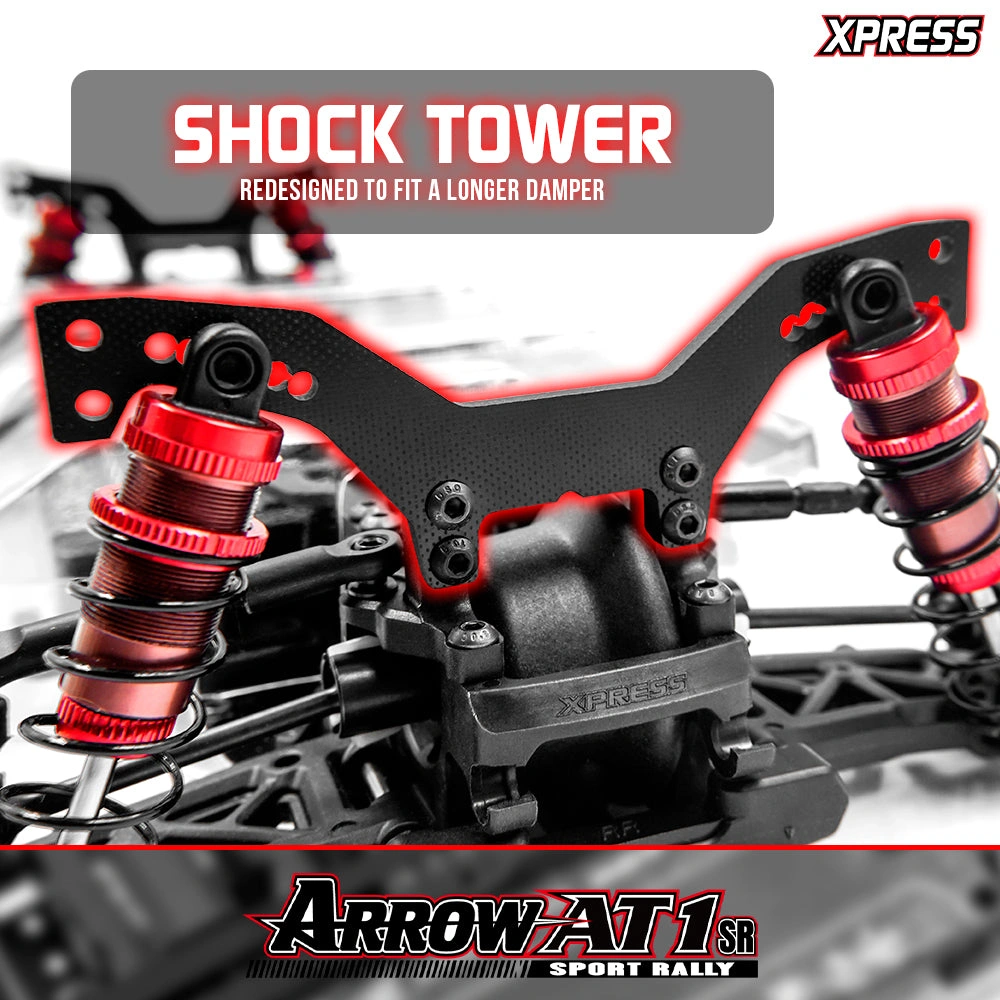

• Long big bore shocks for consistent off-road handling

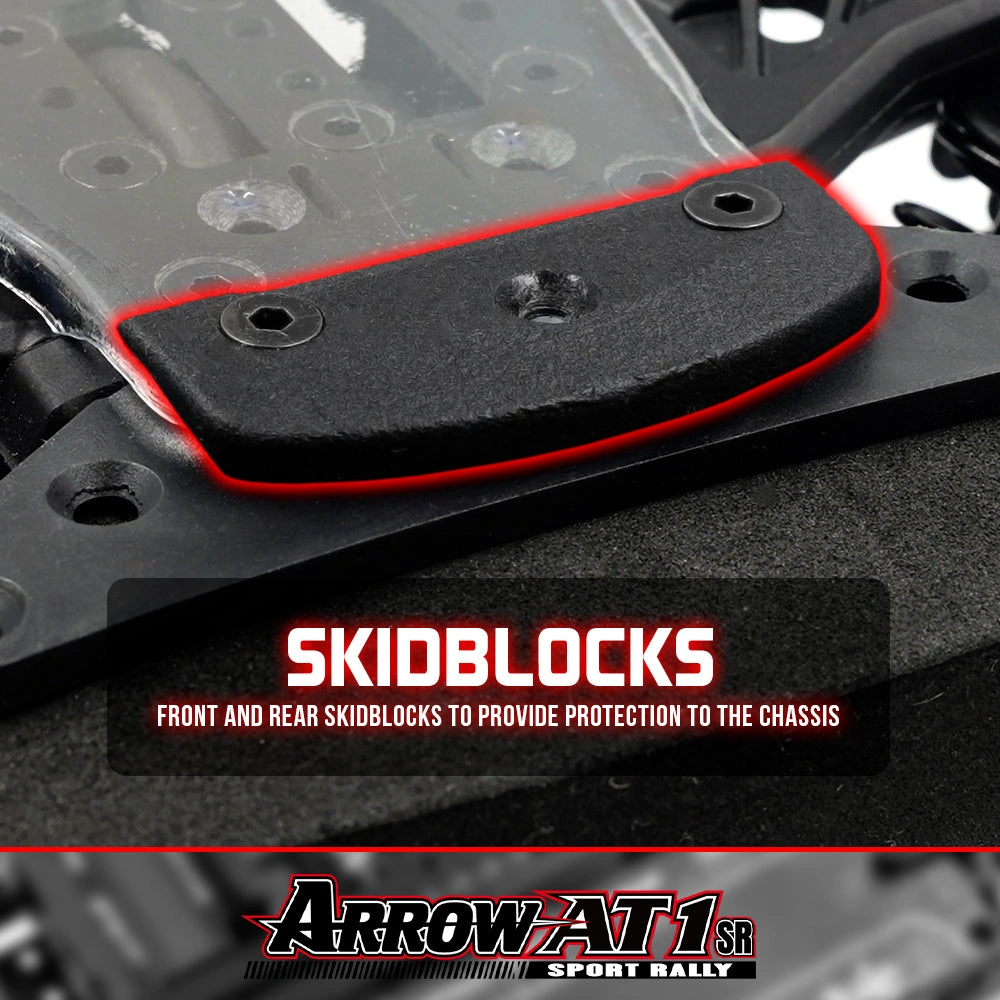

• Front and rear skid blocks to provide protection to the chassis


Specification

• Length: 380mm
• Wheelbase: 258mm (Adjustable)
• Track Width: F186mm / R184mm (Approx.)
• Ride Height (With Rally Block Tires): 15mm (Approx.)

Contents

• Arrow AT1SR Sport Rally Car Kit


Files

• AT1SR Manual:
