Product Detail

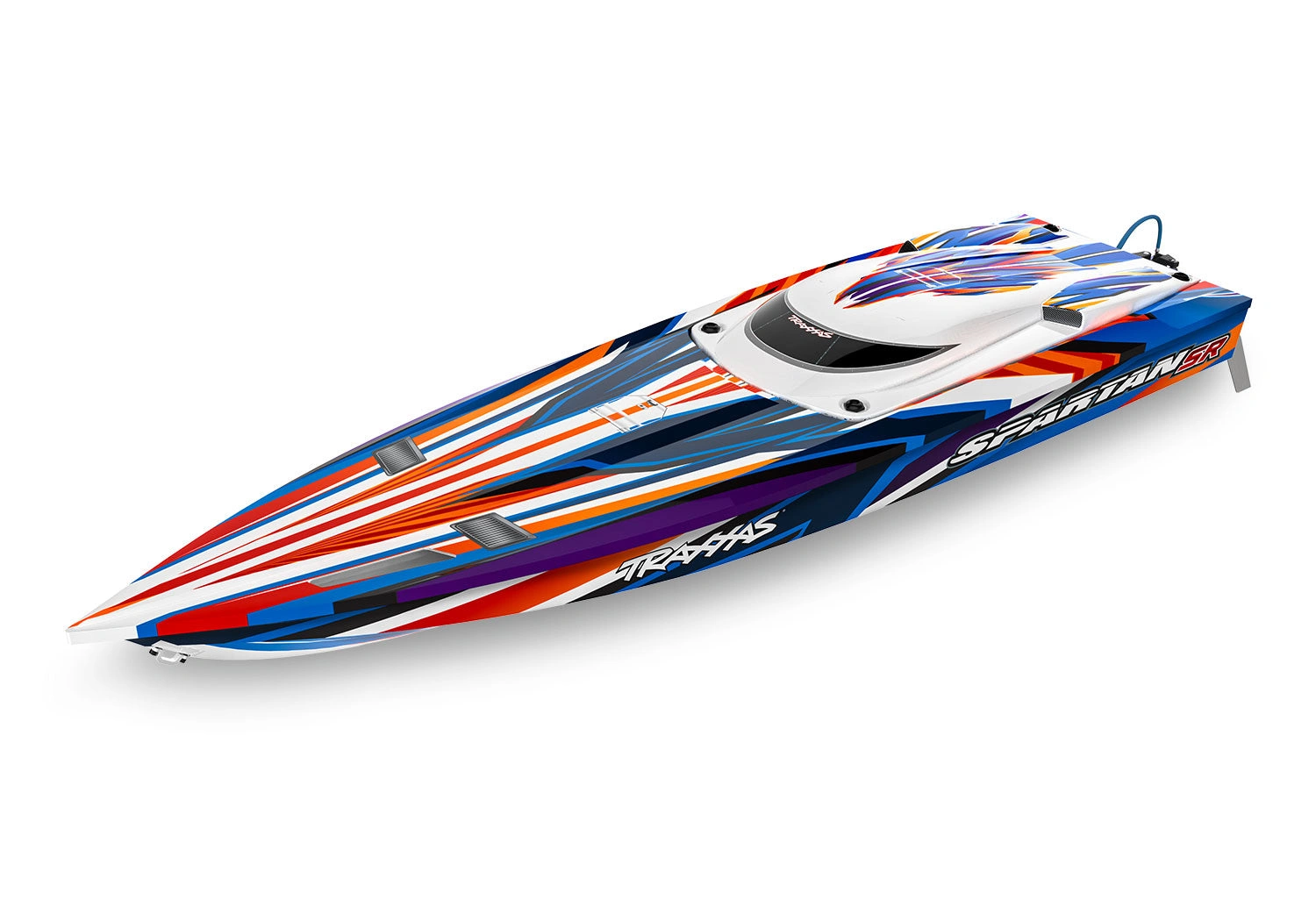

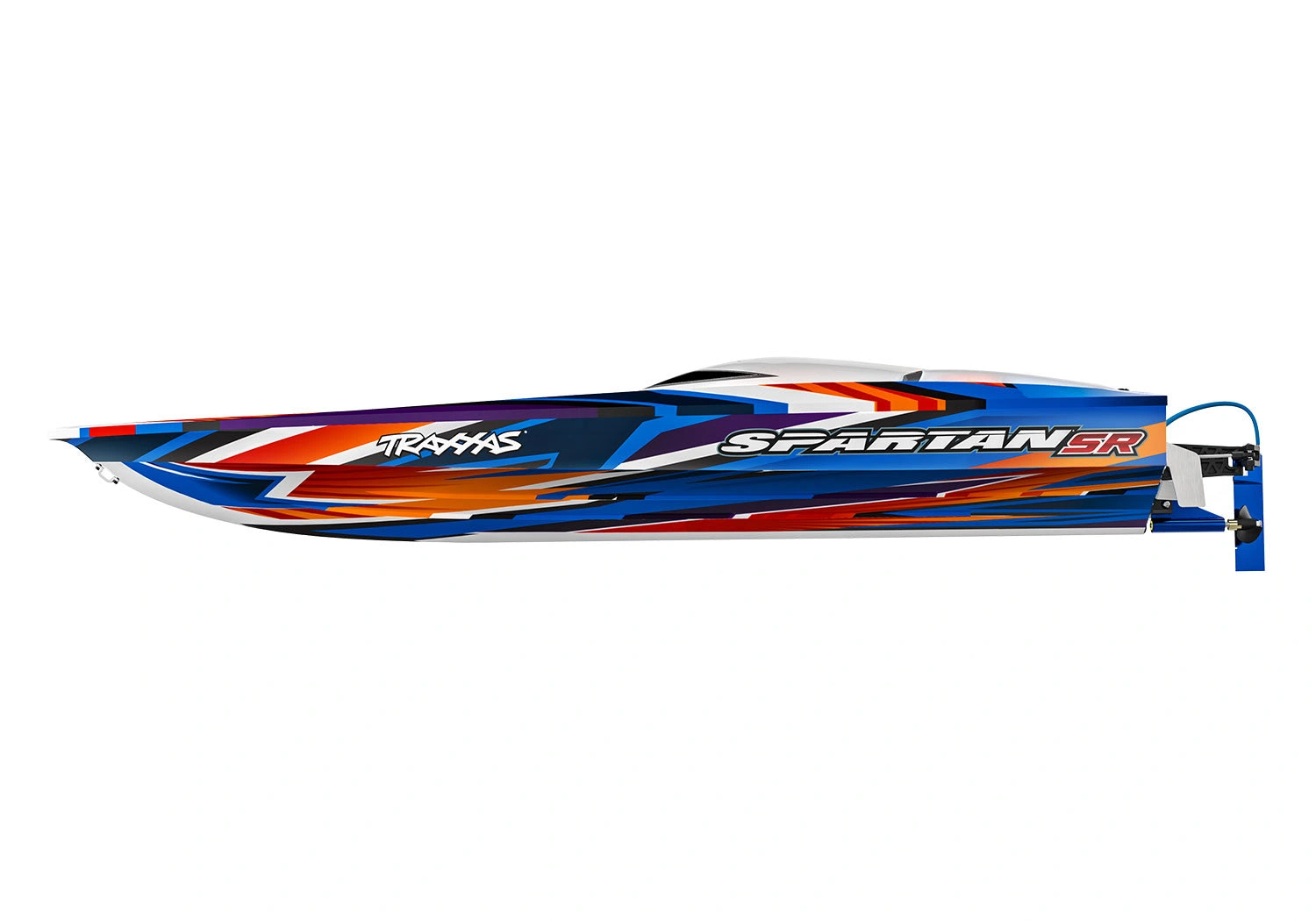

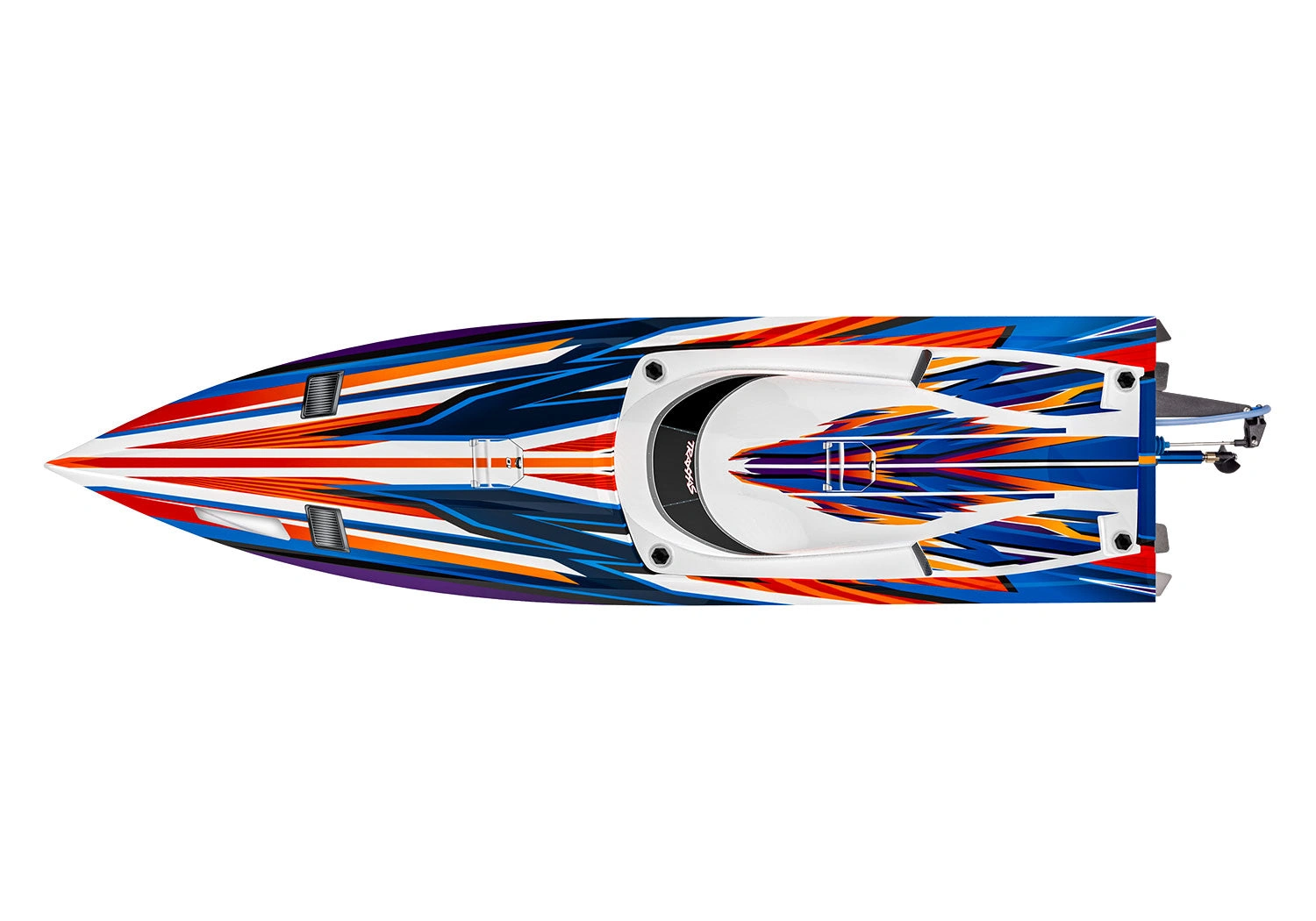

The Traxxas Spartan SR 36' boat combines speed, power, and stability with a sleek design, brushless motor, and 50+mph performance for ultimate RC boating action.

What You’ll Need

• 2-4s Lipo and compatible charger
• Four AA alkaline batteries for the transmitter

Features

• Up to 50 MPH with Dual 3s LiPo Batteries

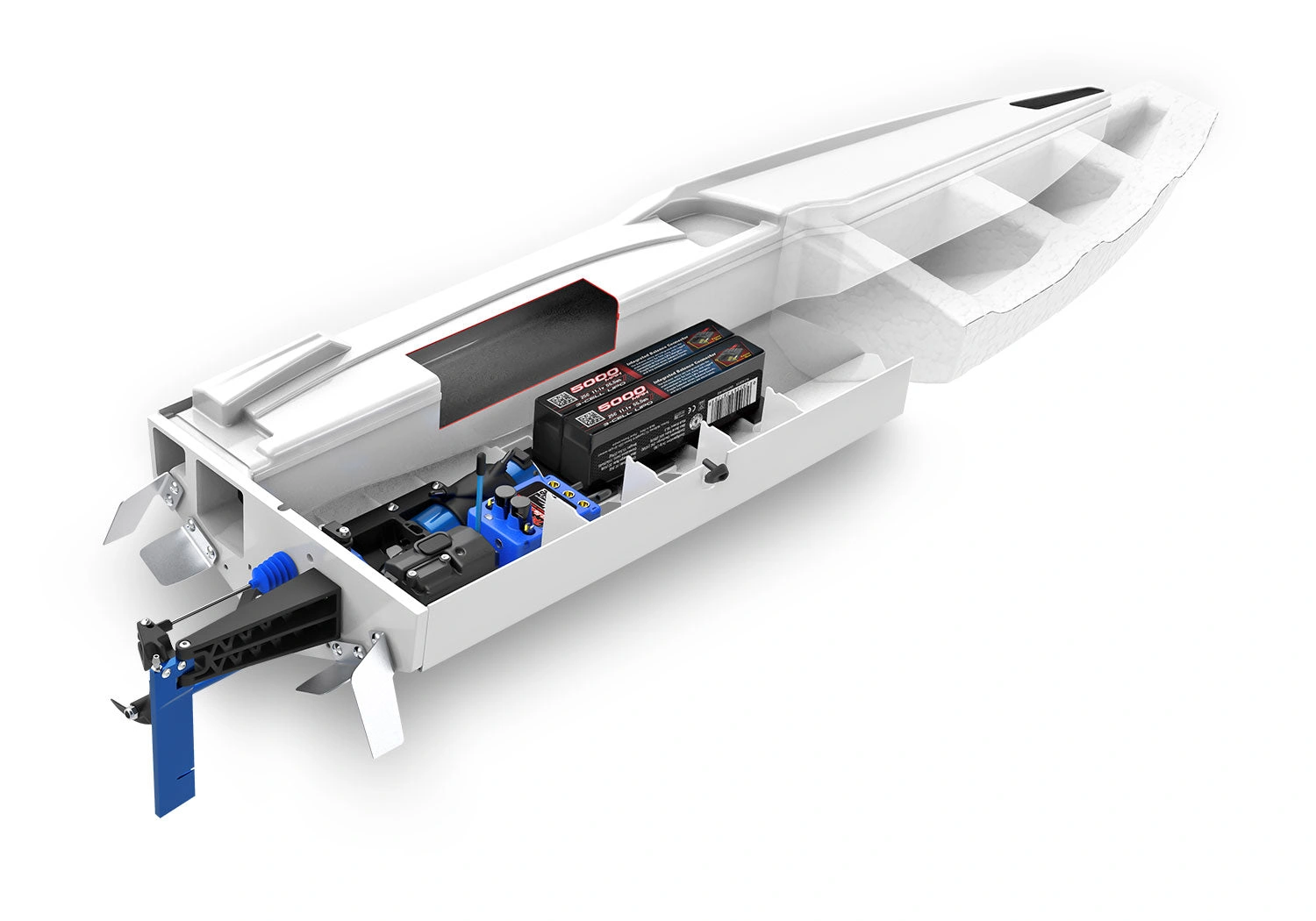

• 36″ Reinforced Deep-V Hull
• Rigid Injection-Molded Clipless Hatch
• TQi 2.4 GHz High Output Radio System

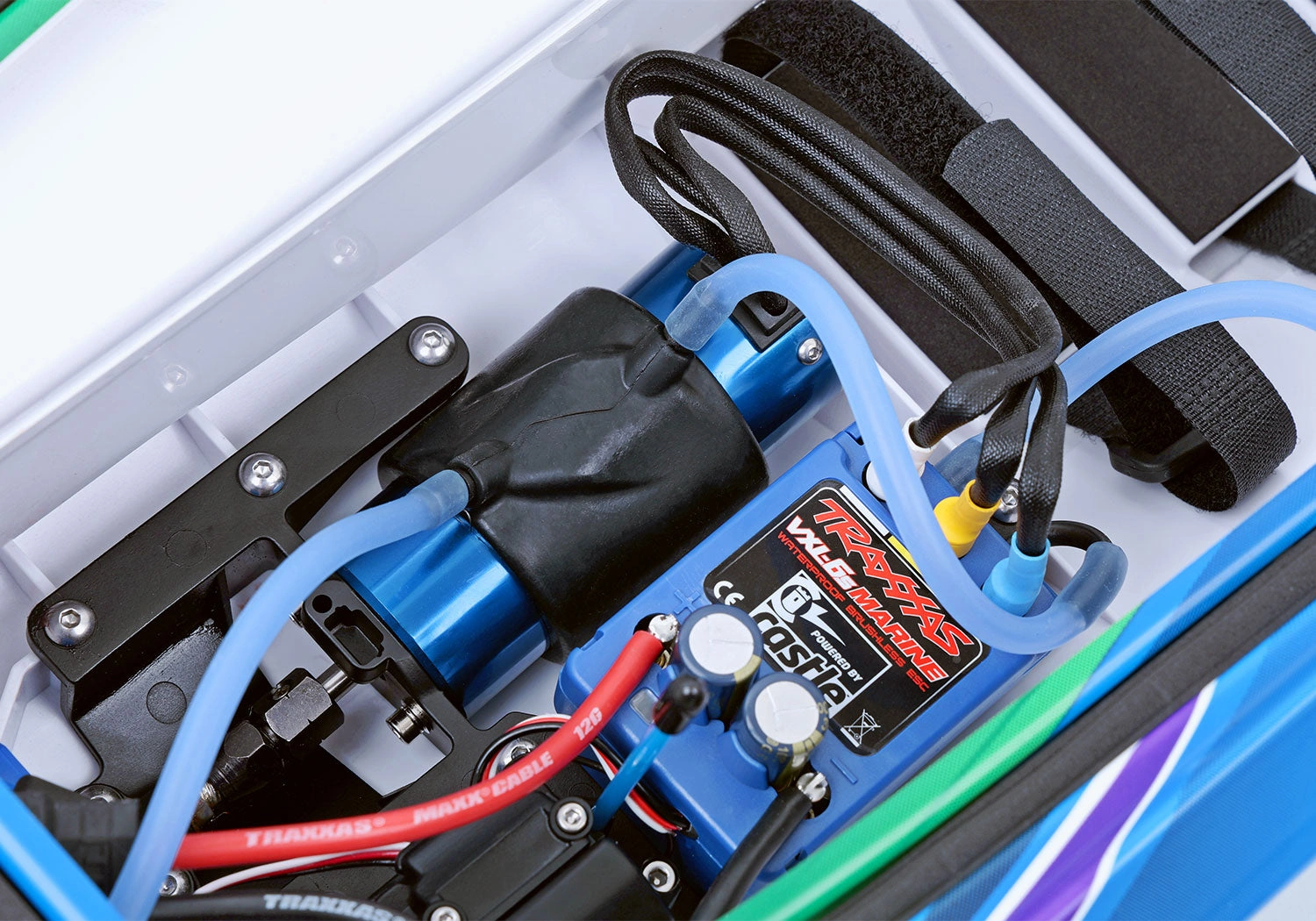

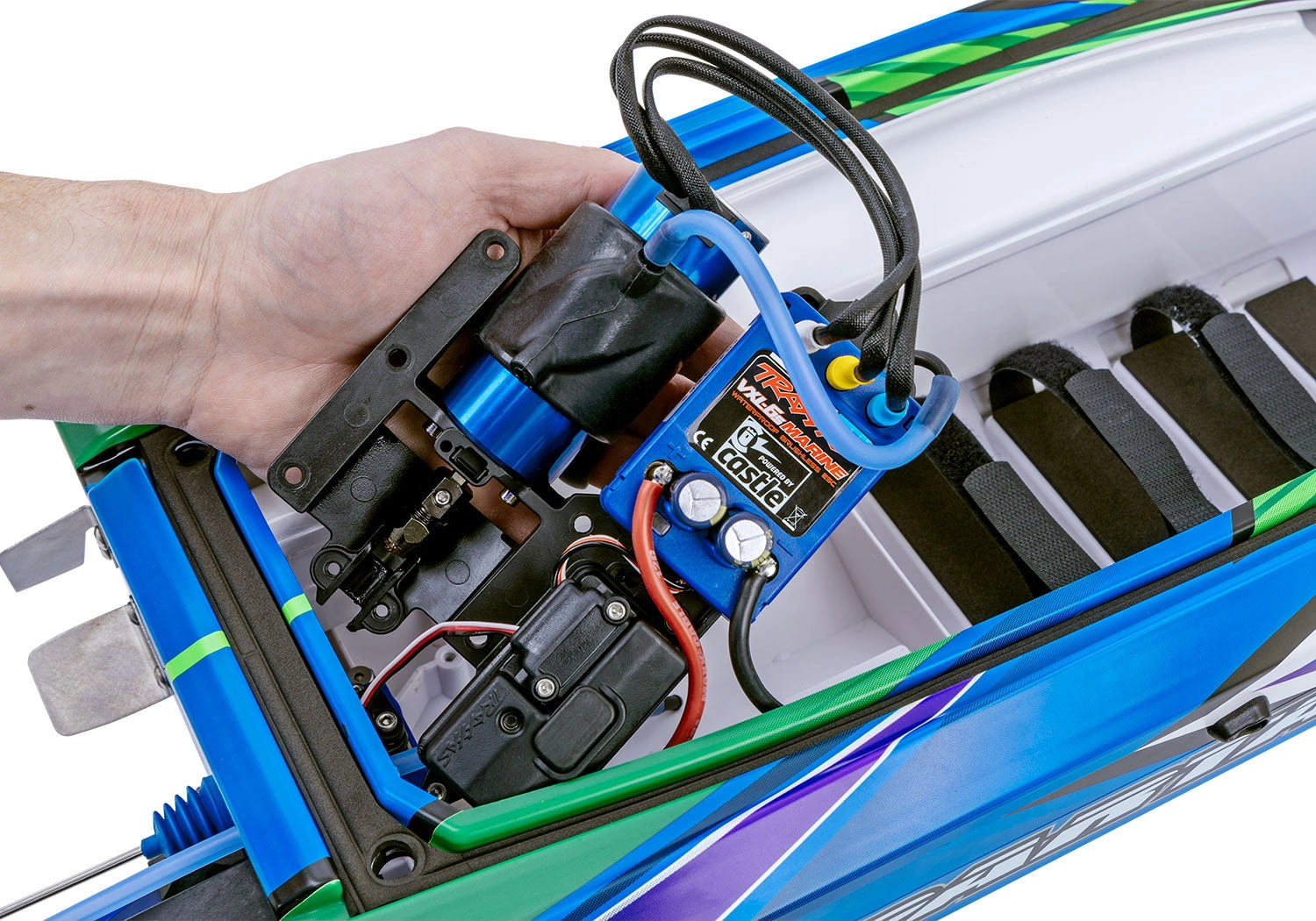

• VXL-6s Marine ESC and Velineon 540XL Brushless Motor
• Traxxas Stability Management (TSM)

Specifications

• Model Name:    Spartan SR Race Boat

• Model Type:    Boats

• Model Speed:    50+ mph with two 3-cell LiPo batteries

• Model Skill Level:    2

• Scale:    1/10

• Weight:    5.29 pounds (2.39 kg)

• Length:    40.8 inches (1037 mm)

• Width:    9.5 inches (243 mm)

• Height:    7.2 inches (183 mm)

• Drive System:    Direct drive, 4.7 mm flex cable
• Outdrive:    Adjustable aluminum

• Hull Length:    36.5 inches (927 mm)

• Dead Rise Angle:    26 degrees

• Length:    40.8 inches (1037 mm)

• Height:    7.2 inches (183 mm)

• Beam (Width):    9.5 inches (243 mm)

• Hull Type:    Composite Deep-V

• Servo(s):    2056 high-torque waterproof

• Radio System:    TQi™ 2.4 GHz 2-channel transmitter with TSM® receiver

Motor Specifications

• Motor Name:    Velineon® 540XL Marine

• Motor Type:    Sensorless brushless

• Motor Weight:    13.62 ounces (386 g)

• Motor Length:    4.07 inches (103 mm) overall length, 3.25 inches (82 mm) can
• length

• Motor Diameter:    1.42 inches (36 mm)

• Motor Shaft Size:    5 mm

• Motor Connector Type:    Traxxas 5.5 mm bullet connectors

ESC Specifications

• ESC Name:    Velineon® VXL-6s Marine

• ESC Type:    Brushless

• ESC Case Size:    2.28 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)

• ESC Weight:    7.30 ounces (207 g)

• Motor Connectors:    Traxxas 5.5 mm bullet connectors

• Battery Connectors:    Traxxas High Current Connector

What’s In The Box

• Spartan SR with VXL-6s Marine ESC and 1850 kV motor

• Quick Start Guide

• TQi 2.4 GHz radio system

• Boat stand

• Hatch nut tool

• Optional wingnuts
