Product Detail

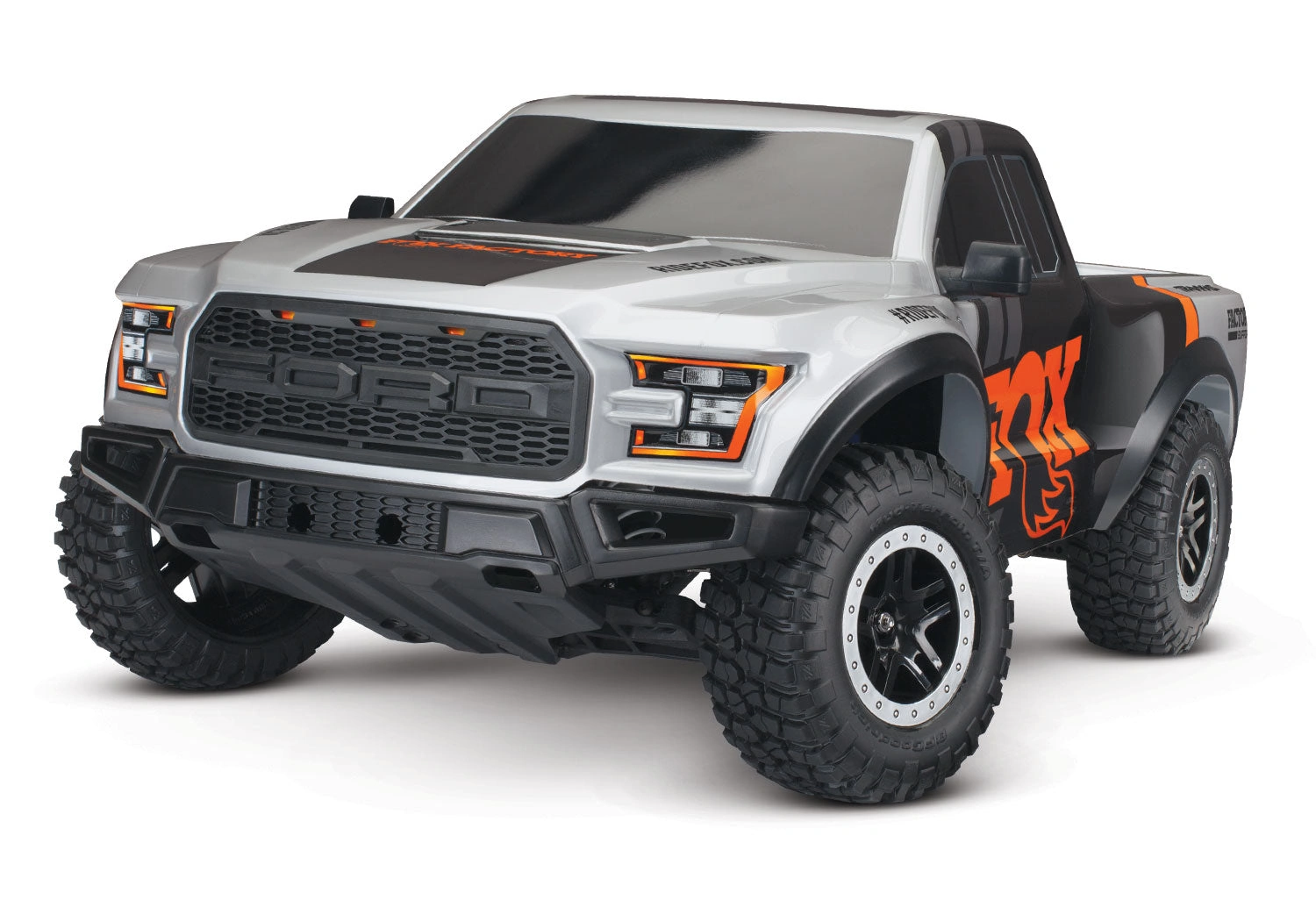

The Traxxas Ford Raptor 2WD BL-2s HD delivers tough brushless power, rugged styling, and heavy-duty strength for high-speed off-road excitement and control.

What You’ll Need

• 2s Lipo and compatible charge (Recommended: 5800mah 2s Lipo)
• Four AA alkaline batteries for the transmitter

Features

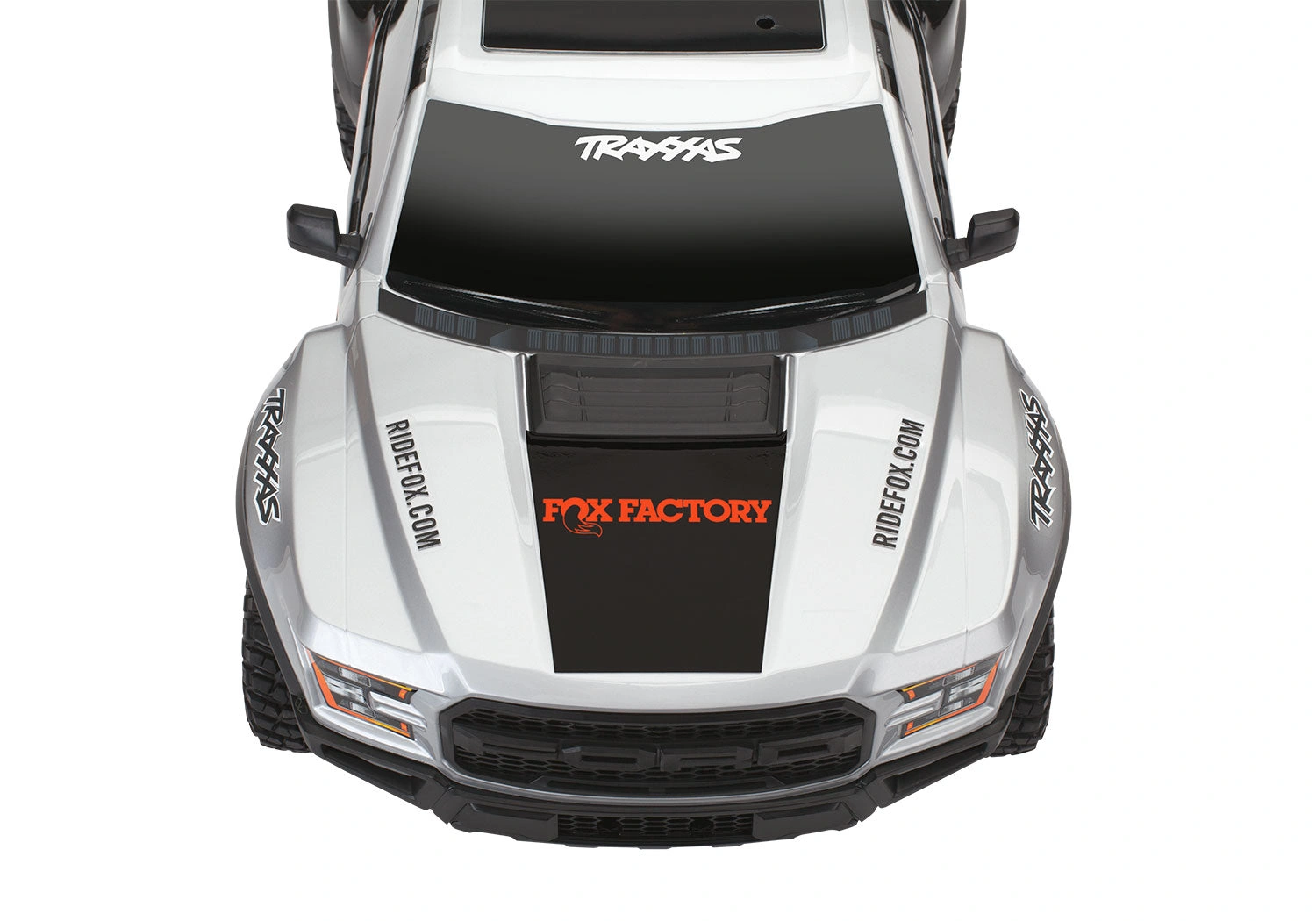

• Licensed Ford® F-150® Raptor® Clipless Body
• BL-2s™ Waterproof ESC and BL-2s Brushless Motor
• Extreme Heavy Duty Parts Installed
• TQ™ 2.4 GHz 2-Channel Radio System


Specifications

• Model Name: Ford Raptor 2WD BL-2s HD

• Model Type: Short Course Trucks

• Model Speed: 35+ mph with 7-cell NiMH battery

• Model Skill Level: 1

• Scale: 1/10

• Weight: 4.81 pounds (2.18 kg)

• Length: 22.36 inches (568 mm)

• Width: 11.65 inches (296 mm)

• Front Track: 11.65 inches (296 mm)

• Rear Track: 11.65 inches (296 mm)

• Height: 8.43 inches (214 mm)
• Wheelbase: 13.2 inches (335 mm)

• Center Ground Clearance: 3.5 inches (89 mm)

• Drivetrain: 2WD

• Transmission: Magnum 272™

• Differential Type: Planetary steel gear

• Gear Ratio (Internal): 2.72 (final drive: 9.05)

• Gear Pitch: 48 pitch

• Servo(s): 2075 digital high-torque waterproof

• Radio System: 2.4 GHz 2-channel radio

• Battery Compartment Specs: 165 mm X 49.5 mm X 23 mm, 26 mm

Motor Specifications

• Motor Name: BL-2s 3300 kV

• Motor Type: Sensorless brushless

• Motor Weight: 7.51 ounces (213 g)

• Motor Length: 3.15 inches (80 mm)

• Motor Diameter: 1.42 inches (36 mm)

• Motor Shaft Size: 3mm

• Motor Connector Type: Traxxas Quick Connect Motor Plug

ESC Specifications

• ESC Name: BL-2s Electronic Speed Control

• ESC Type: Brushless

• ESC Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)

• ESC Weight: 3.07 ounces (87 g)

• Motor Connectors: Traxxas Quick Connect Motor Plug

• Battery Connectors: Traxxas High-Current Connector

What’s In The Box

• Ford F-150 Raptor BL-2s ESC and 3300 kV motor
• Quick Start Guide

• TQ 2.4 GHz radio system

• High quality maintenance tools
