Product Detail

Looking for an upgrade from your MR-03 readyset or just want to skip the slower car and go straight to a brushless powerhouse? Well you're in the right place. The MR-03EVO is a jump in power and performance over the start MR-03 RTR Readyset.

Required to Run

• Receiver unit
• Transmitter compatible with receiver unit
• Body, wheels and tires
• AAA x 4 alkaline batteries or Ni-MH batteries for chassis
• Batteries for transmitter

Compatible Rx Modules

• No. 82040 for Kyosho KT-18, EX-6, EX-6R and KO EX-2, EX-RR
• No. 82041 for Kyosho KT-531P, KT432PT
• No. 82042 for Futaba 10PX, 7PX, 7XC, 4PM
• No. 82043 for KO Propo EX-NEXT, MC-8

Features

• First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.

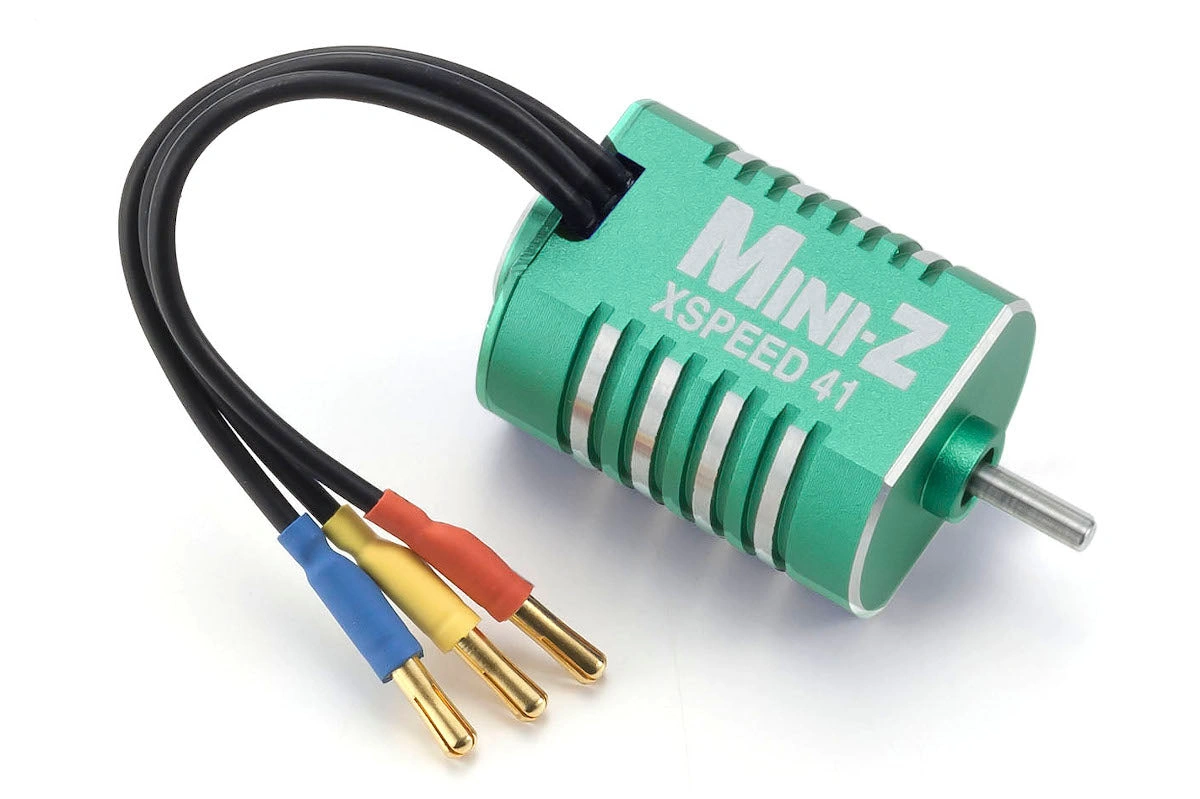

• Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless motor (4100KV).
• I.C.S manager features detailed steering and throttle parameter adjustment, as well as switching between brushless and brushed modes.
• Powered by independent CPUs for ESC and receiver, increased internal processing speed contributes to precision steering and throttle control.

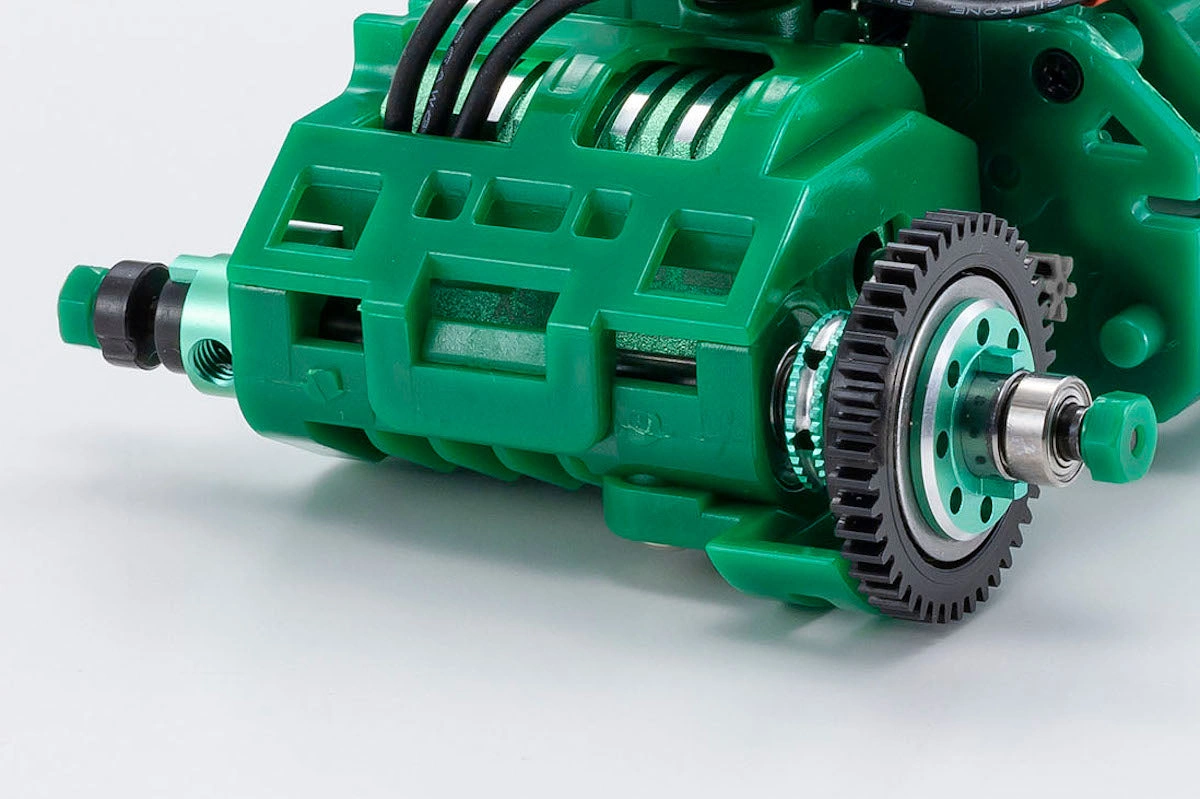

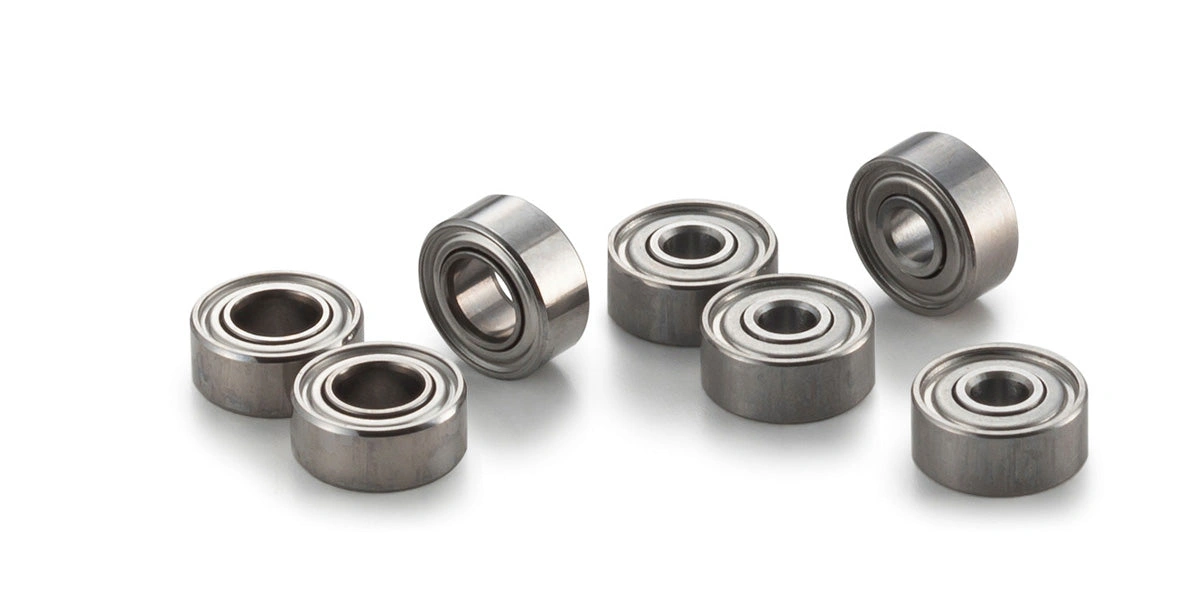

• Equipped with ball bearings and blue anodized Ball Diff Set II.

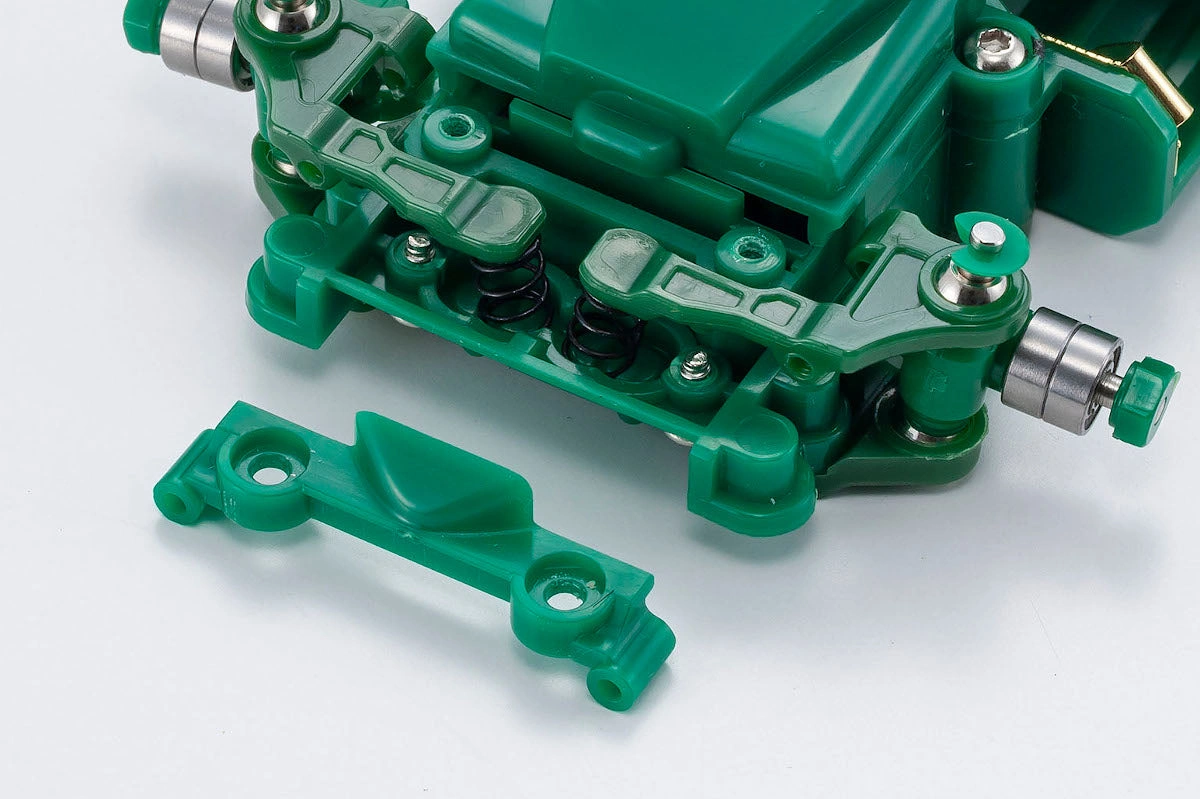

• Newly designed separate receiver cover and front upper arm mount make tread adjustment easier.
• Compatible with optional parts for the MR-03 chassis.
• Including newly developed front upper arms with caster angles (1 deg., 2 deg. and 3 deg.)
• Special version equipped with a blue colored chassis and parts, which is only available in this chassis set.

Specifications

• Length: 120.5mm
• Width: 70-76mm
• Height: 35mm
• Wheelbase: 94.0mm(L)
• Motor Mount: MM2
• Tread:
• Front: 61.5-63.0mm
• Rear: 61.5-63.0mm
• Tires
• Front: 25×8.5mm (sold separately)
• Rear: 25×11mm (sold separately)
• Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
• Weight: 135g (Body / tires / wheels not included, battery included.)
• Motor: KYOSHO SPEED HOUSE 4100KV

Contents

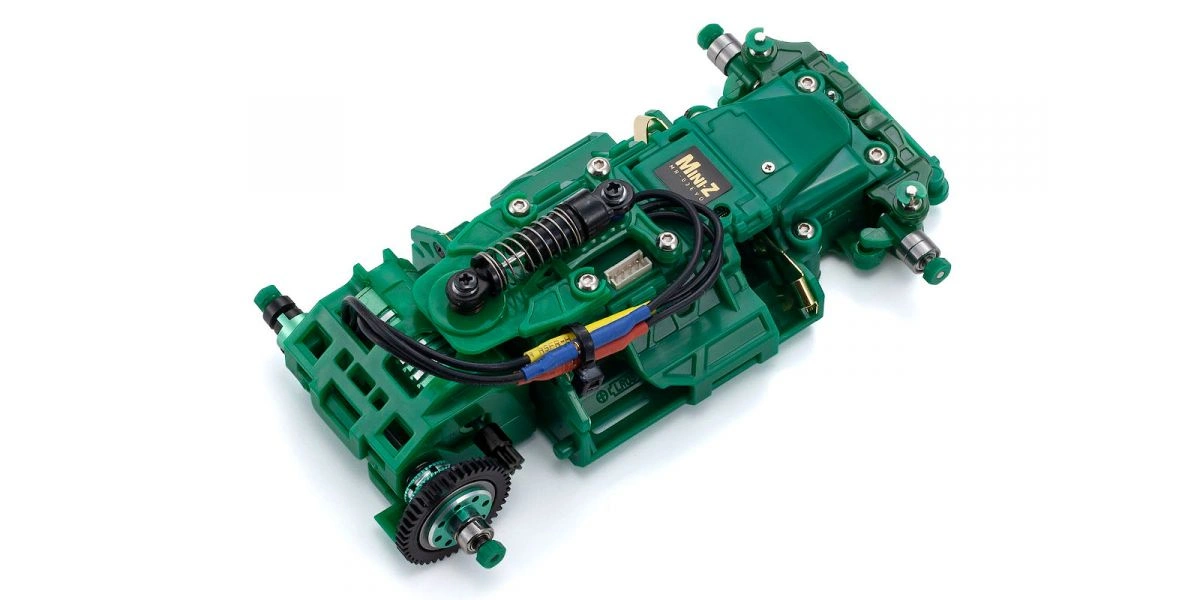

• MR-03W-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE KV4100 brushless motor
• Parts set for changing front tread
• 6T, 7T, 8T, 9T Pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel nuts
