Product Detail

The 1/27.6 MINI-Z RWD MR-04 features a micro sensored brush motor as its power source, which linearly responds to throttle control from the bottom to top RPM range. The EVO2 main system features super low latency control. Almost everything has been updated from the 14-year-old MR-03!

Required to Run

• Transmitter and compatible receiver unit (EVO/EVO2)
• Noble Mini-Z EVO Receiver
• Noble NB4 2.4GHz TX
• Body, wheels and tires
• Jomurema GT01 - Recommended for racing
• AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
• Team Orion NiMH 900HV AAA Cells
• AAA-size alkaline batteries x 4 for transmitter
• Rage RC AAA Alkaline Batteries

Features

• The EVO2 mainboard shortens the latency from 2.6 msec to less than 1 msec.

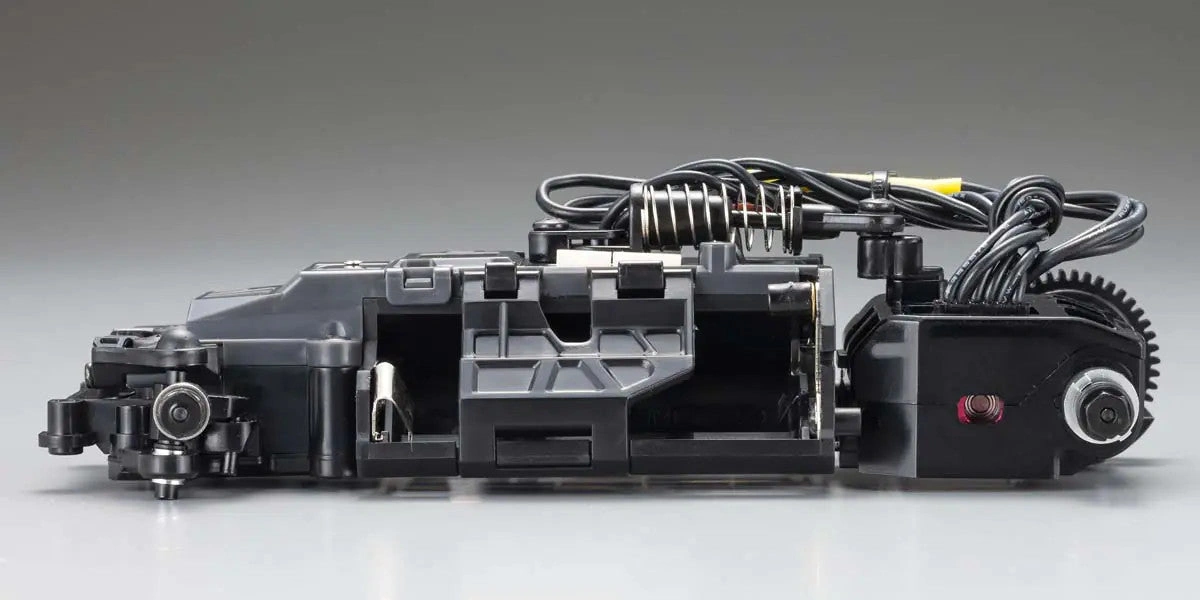

• Battery mount position is lowered to lower the center of gravity for better cornering
• The all-new front section reduces the scrub radius by 1.5mm for better steering control.
• The one-piece MA-030 type kingpin/knuckle reduces weight and play.

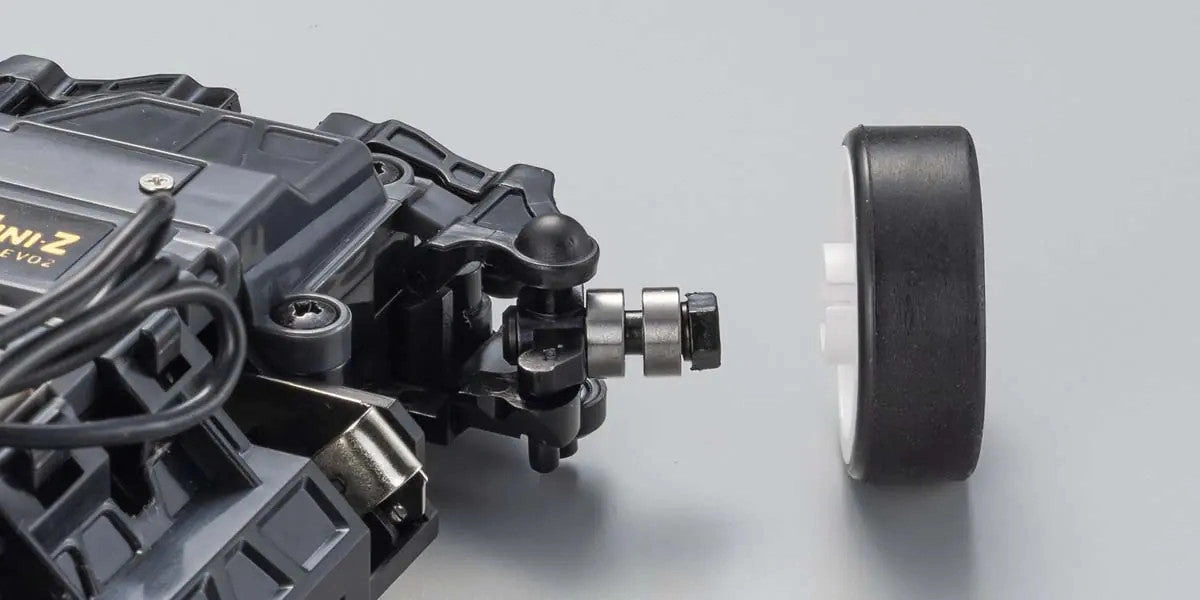

• The 3-mm diameter front wheel shaft and bearing reduce friction loss.
• The new potentiometer is more durable, and it ensures precise steering control.
• IC tag mount position is raised by 0.5 mm, which means you can use even smaller front tires
• The EVO2 main board also supports existing EVO receiver units.

Specifications

• Length: 124.5mm
• Width: 72～76mm
• Height: 31mm
• Motor Mount: MM
• Wheelbase 98.0mm (LL)
• Tread: Tires not included
• Tires: Not included
• Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
• Weight: 135.5g (Body/tires/wheels not included）
• Motor Kyosho Speed House Xspeed 85 (KV8500)

Contents

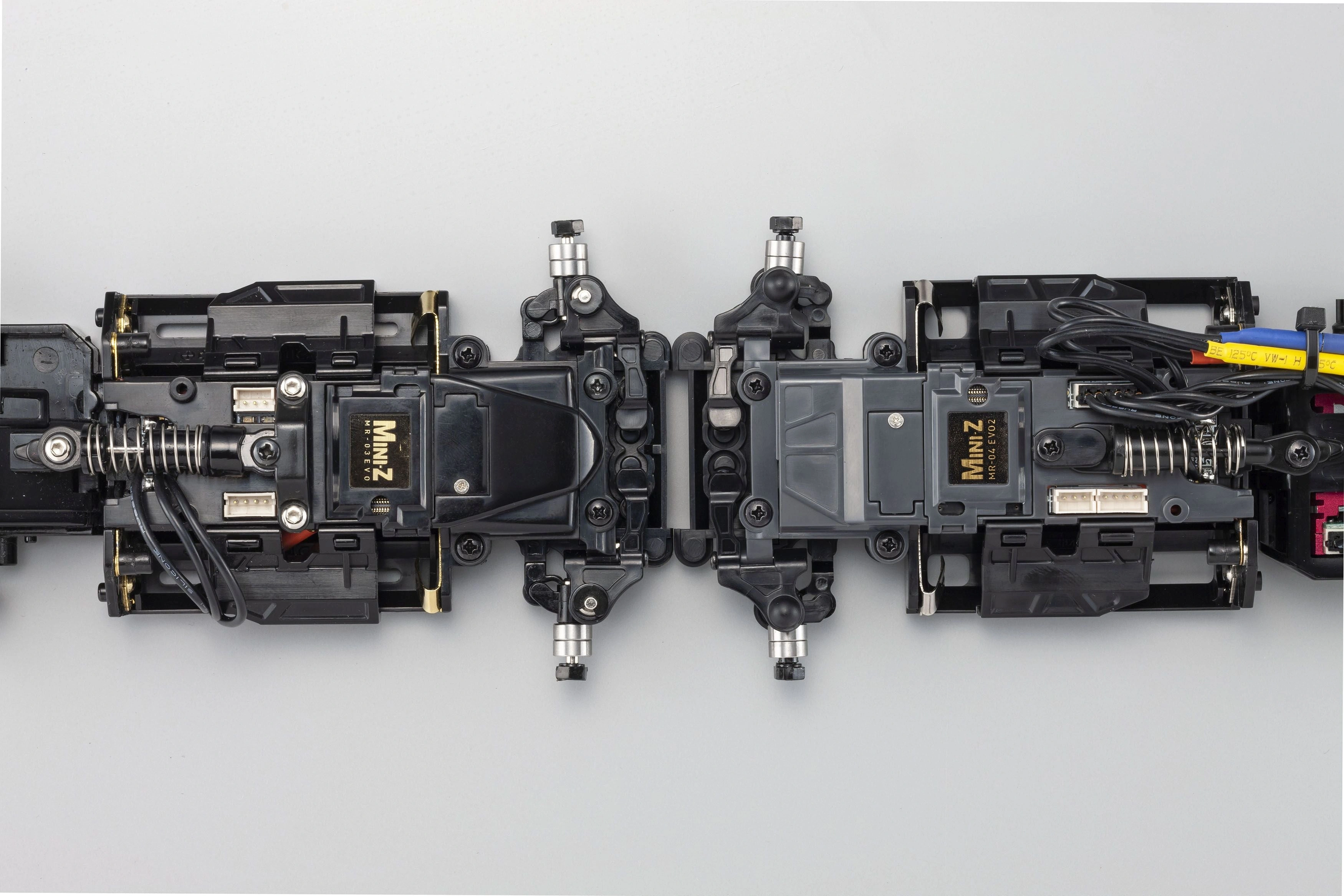

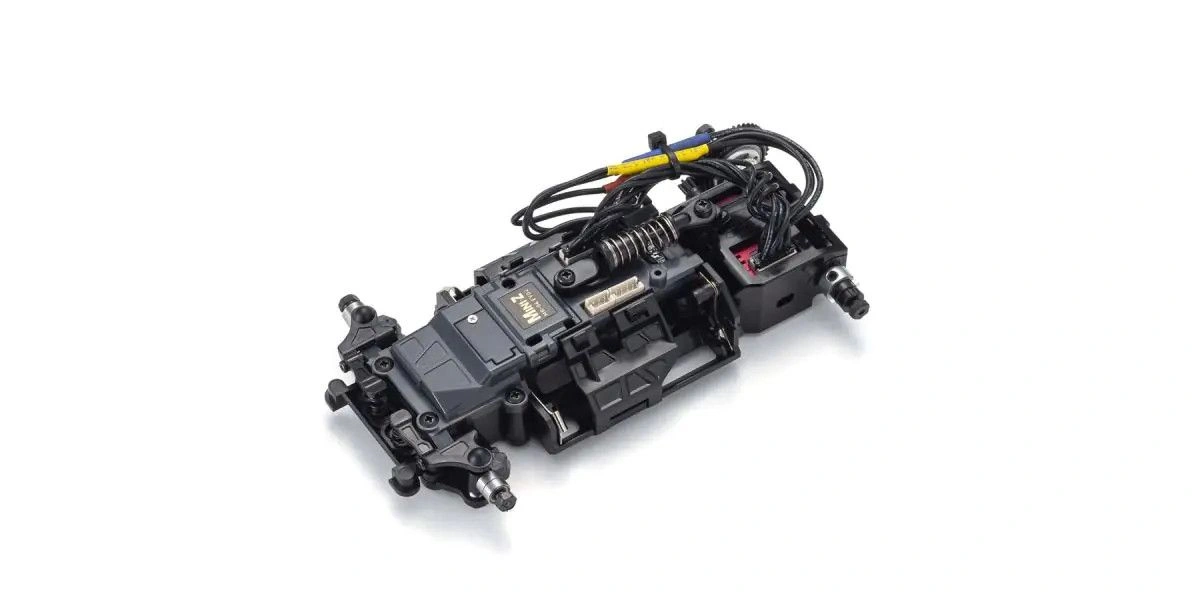

• MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE KV8500 brushless motor
• Parts set for changing front tread
• 6T, 7T, 8T, 9T Pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel nuts
